Glue jointing machine

Products

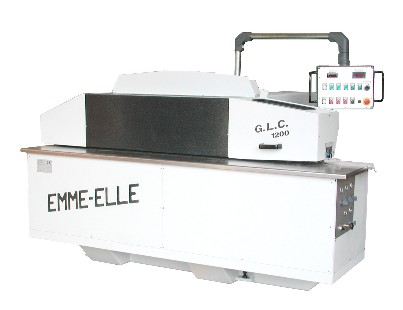

LONGITUDINAL GLUE JOINTING MACHINE MOD. G.L.C. 1200
The longitudinal jointing machine MOD. G.L.C. 1200 allows a perfect jointing of two veneer sheets in one operation by using a patented system for the glue application.
Indeed, the Longitudinal Glue Jointing machine MOD. G.L.C. 1200 we produce, is equipped with two tanks for the mass glue application. This innovation grants high quality and high jointing finishing since the glue is simultaneously applied on both edges to be jointed.

The advantages of this type of glue processing are the following:
higher working speed (the machine can reach a speed of 35/40 mt/min with some wood types.)
In case, for any reason, no glue is applied on one of the two edges, the jointing is anyway granted since the glue is applied on the other edge as well.
A high resistant jointing is granted by applying the glue on both edges, since the two sheets are jointed with glue to glue and not with glue to wood.


Veneer sheet dimensions
Thickness mm 0.4-2
Min. Length mm 360
Min. Width mm 45
Max. Width mm 1200
Technical Characteristics
Heating area length mm 1200
Heating temperature fino a 240°
Transport speed 10-40 m/min
Glue type UREA
Power connection 6 Kw
Voltage 400 V / 50 Hz
Machine dimensions
Length mm 2600
Width mm 2000
Height mm 800
Machine Weight Kg. 2000
