Cutting machine single cut T.O.

Products > Cutting machine

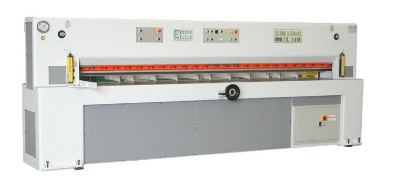

HYDRAULIC CUTTING MACHINE with single cut MOD. T.O.
The one blade hydraulic cutting machine enables the veneer pack to be cut extremely precisely, thanks to the back gauge for the parallel cut which can be controlled either manually or automatically.
The machine can also be equipped with a programmer to adjust the back gauge according to the cutting lengths set by the operator.
An hydraulic control unit controls the movement of the cylinders to move the pressure pad and guarantee maximim cutting speed and power.

Technical Characteristics		T.O. 2300	T.O. 2800	T.O. 3200	T.O. 3600	T.O.4000
Cut length	mm	2320	2820	3220	3620	4020
Cut height	mm	100	100	100	100	100
Max cut depth	mm	750	750	750	750	750
Minimum cut depth registro	mm	20	20	20	20	20
Oleodynamic pump power	HP	5.5	7.5	7.5	7.5	7.5
Veneering stop power	HP	0.75	0.75	0.75	0.75	0.75
Working pressure	Bar	80-100	80-100	80-100	80-100	80-100
Total weight	Kg	3000	3600	4300	5000	5500
Data, dimensions and design are not binding and may be changed without notice.
